20W Aluminum Profile Trunking Lighting System LED Linear Light LED
Tube Light
Quick Details :
Part No. : PS-RAIL-572
size: 572 x 68 x 68mm
Lamp Power(W): 20 W
Item Type: Tube Lights
LED Light Source: samsung 2835
Warranty(Years): 5
Input Voltage(V): AC 180 - 240V(AC100-277V)
Lamp Luminous Flux(lm): 2,400lm – 2,600lm
Lamp Luminous Efficiency(lm/w): 120lm/w -130lm/w (Customized)
CRI (Ra>): 80
Color Temperature(CCT): Cool White
Working Temperature(℃): -30 - 55
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum
IP Rating: 20
Certification: CE, RoHS, UL
Place of Origin: Guangdong, China (Mainland)
Brand Name: Phenson Lighting
Product Name: Led Linear Light
Application: supermarket/office/warehouse/school
Material: Alumimum + PC Cover
Beam angle: 60/120 Degree
Driver: LiFud Brand Driver
CCT: 3000K-6500K
Feature :
Low installation cost - everything in one box and installation is
tool-less .
The high light efficiency of 130 lm/W makes reduction on energy
consumption and additional cost
Ra >80
CCT: 3,000K/4,000K/5,000K/6,000K
A wide range of optics from 30° to 120° distribution, as well as
asymmetric and double asymmetric distribution
Emergency versions available
Dimming versions available
Different length with various power is available
X, L and T Standard Module Node connectors with electrical feed-in
and feed-out

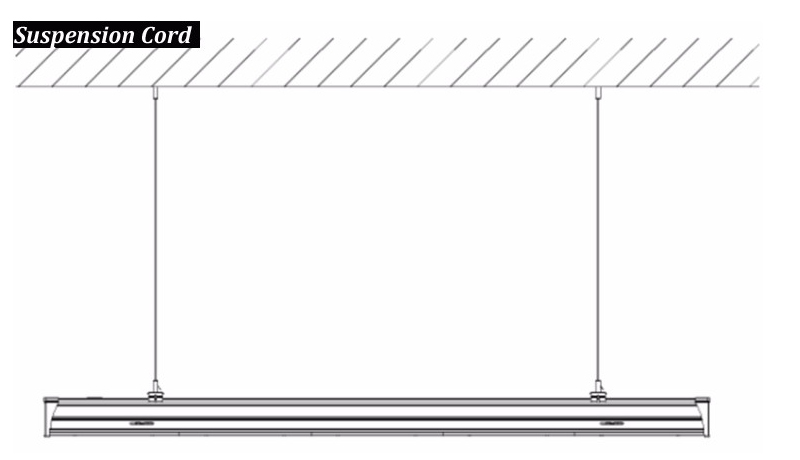

Mounting Options: chain suspended, cord suspended, rod suspended or
surface mounted
Color scheme: White
Parameter :
| Material | Aluminum profile |
| Part No. | PS-RAIL-572 |
| Colour scheme | White |
| Installation type | Rotatory knob or holding clamp |
| Dimensions( Length x Breadth x Height) | 572 x 68 x 68mm |
| Weight | Approx.4 kg |
| Protection type | IP20 |
| Illuminant Type | LED-Moduls with Mid-Power-LEDs |
| Optical System | Wide,Narrow,wide,Flat and double Asymmetric light distribution |
| Luminous Flux | 2,400lm – 2,600lm |
| Luminous Output | 120lm/w -130lm/w (Customized) |
| Colour Temperature | 3,000K / 4,000K / 5,000K / 6,000K |
| Colour Rendering Index(Ra) | > 80 |
| Dimming( Power control) | With / without DALI |
| Lifetime at (ta)30° | 50,000 h |
| Power Rating | 20W |
| Protection class | SKI |
| Operating voltage | AC 180 - 240V(AC100-277V) |
| Frequency | 50 / 60 Hz |
| Application areas | Halls,warehouses,manufacturing facilities,sales premises |
| Specific Installation | Rail- Light System |
| Installation height | 3 to 20m |
| Permissible ambient temperature (ta) 30° | -25℃ to +35℃ |
| Certification | CE / TUV / SAA / UL |
| Connection with circuit breaker (B16) | 450 Pcs |
Application :
Car Showrooms, Car workshops, Exhibition Halls, Production Lines,
Supermarkets
Narrow(30deg), used in corridors and hospitals
*Narrow(60deg), used in parking lots,Dinning halls and so on
*Wide(90deg),Used in airports, meeting halls and so on
*Asymmetric L/R(18deg), used in Galleries, Retail areas
*Double Asymmetric(20deg), used in Groceries ,Passages
*Flat(60deg/110deg), used in badminton courts and warehouses
Installing method :
Testing Room :
