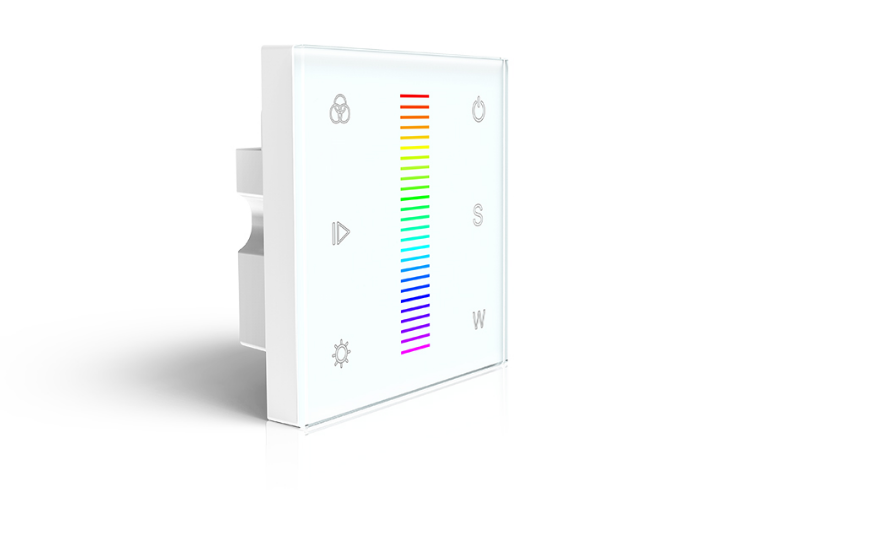

High sensitive Wall Mounted Touch Panel RGBW LED Constant Voltage Controller

Production Description

The rgb touch controller dedicated toany RGB LED lamps,choose any color through color wheel or slide.It has customized static,jump,smooth or strobe color mode,use remote to select static color,adjust each channel brightness,switch color mode,adjust speed and brightness,create and launch scene,etc.

● Touch panel RGBW PWM constant voltage controller.
● Ultra sensitive high strength glass touch panel with touch
color slide in the middle and backlighting.
● Smooth and accurate color adjustment by touching the
color slide.
● Adopt 2.4GHz wireless technology, when used as controller,
can accept up to 10 remoter control.
● Built in 30 change mode optional, adjustable speed and
brightness.
● Can work with WiFi-relay controller after install APP on IOS
and Android system.
● Work with power repeater to expand output unlimitedly.

Technical Parameters

● Input voltage 5 24VDC
● PWM constant voltage + RF(2.4G) Output type
● 4CH,3A/CH Output current
● 60-288W Output power
● Grey levels: 256/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● L86×W86×H36.5mm Product size
● Net weight: 335g

Product Size

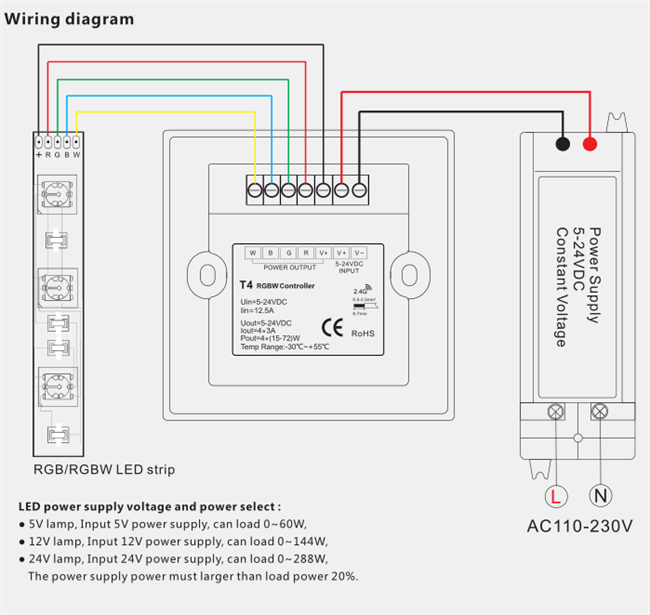

Wiring Diagram
