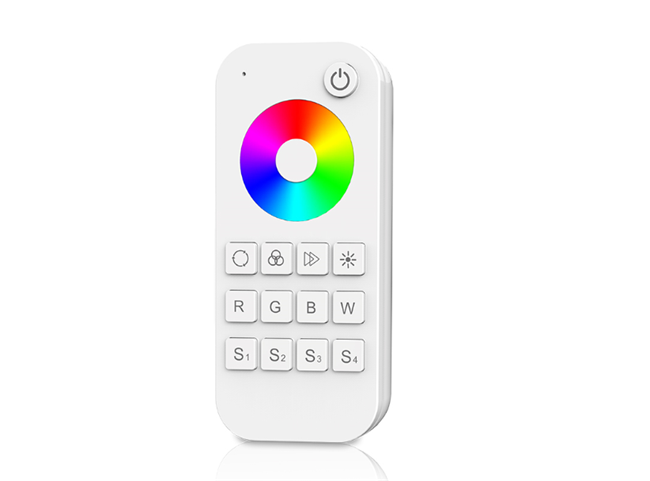

2017 Hot selling 1 zone & 4 scence RGB / RGBW Dimming RF Touch
Remoter
Production Description
● Apply to single color, dual color, RGB, RGBW or RGB+CCT LED
controller or smart lamp.
● Adopt 2.4GHz wireless technology, remote distance up to 30m.
● Each remote can match one or more receiver.
● Operate with LED indicator light.
Technical Parameters
● Output signal: RF(2.4GHz)
● Working voltage: 3VDC(AAA*2pcs)
● Working current: ＜20mA
● Standby current: ＜10μA
● Standby time: 6 months
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Dimension: L122×W53×H17.5mm
● Weight: 135g
Product Size
Operation
● When turn on light, the indicator display blue. when turn off
light, the indicator display red .
● When touch the color wheel, the indicator will display the same
color .
● When press or touch operation is invalid (If the light is off),
the indicator display red .
● To extend battery life, no touch or press key operation after a
few seconds ,
the touch wheel will enter sleep state, you need press any key to
make touch wheel quit sleep state .
Match guide
Remote match with 2.4G RF controller, dimming driver, smart lamp
and panel controller .
Match with controller(with match key)
1. Match : Short press match key, within 5s, press on/off key or
zone key of the remote .
2. Delete : Long press match key for 5s, delete all matched remote
.
3. Multiple zone remote only use zone key to match each zone
receiver .
Match with controller(without match key), dimming driver or smart
lamp
1. Match : Switch off the power, then switch on power again ,
short press on/off key or zone key 3 times on the remote quickly
within 5s after power on ,
the link is done once the light blinks 3 times .
2. Delete : Switch off the power, then switch on power again,
short press on/off key or zone key 5 times on the remote quickly
within 5s after power on ,
the unlink is done once the light blinks 5 times .
3. Multiple zone remote only use zone key to match each zone
receiver .
Match with panel controller
1. Match: Turn on light, turn off, immediately press on/off key for
5s,
within 5s, press on/off key or zone key of the remote.
2. Delete: Turn on light, turn off, immediately press on/off key
for 10s, delete all matched remote.
3. Multiple zone remote only use zone key to match each zone
receiver.
