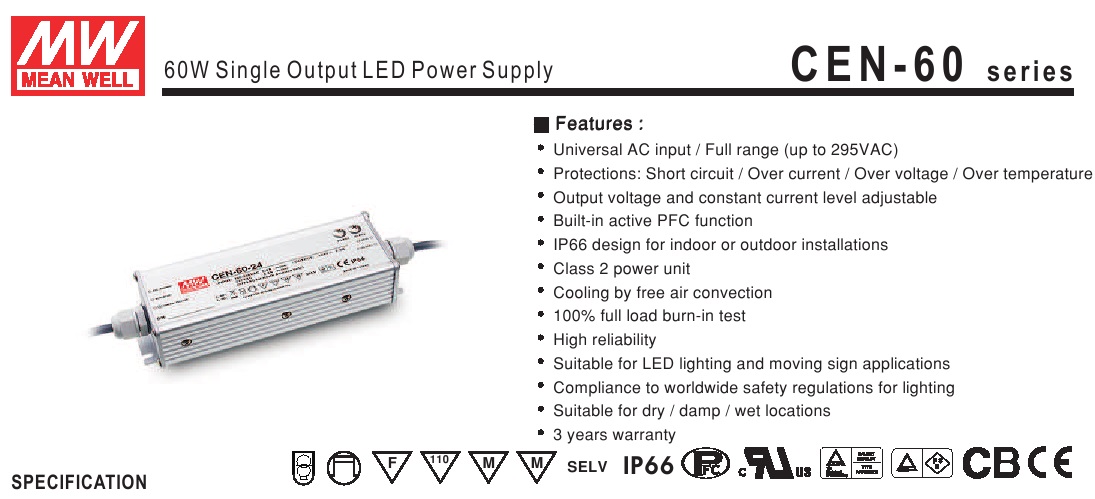

MEANWELL CEN-60 60W 12V Single Output LED Power Supply LED Driver
Features :
♦ Universal AC input / Full range (up to 295VAC)
♦ Protections: Short circuit / / Over voltage / Over temperature
♦ Output voltage and constant current level adjustable
♦ Built-in active PFC function
♦ IP66 design for indoor or outdoor installations
♦ Class 2 power unit
♦ Cooling by free air convection
♦ 100% full load burn-in test
♦ High reliability
♦ Suitable for LED lighting and moving sign applications
♦ Compliance to worldwide safety regulations for lighting
♦ Suitable for dry / damp / wet locations
♦ 3 years warranty
Specifications:
♦ 60w waterproof led driver
♦ Original Meanwell
♦ Prompt Delivery: 3~5 days
♦ Good Price High Quality
♦ 3 years warranty
| MODEL | CEN-60-12 |
| OUTPUT | DC VOLTAGE | 12V |
| CONSTANT CURRENT OPERATION VOLTAGE Note.5 | 9 ~ 12V |
| CURRENT RANGE | 0 ~ 5A |
| RATED CURRENT | 5A |
| RATED POWER | 60W |
| RIPPLE & NOISE (max.) Note.2 | 2Vp-p |
| VOLTAGE ADJ. RANGE | 10.8~13.5V |
| VOLTAGE ADJ. RANGE | 3.75 ~ 5A |
| VOLTAGE TOLERANCENote.3 | 10% |
| LINE REGULATION | 3.0% |
| LOAD REGULATION | 5.0% |
| SETUP, RISE TIME | 1400ms / 230VAC 2800ms / 115VAC at full load |
| INPUT | VOLTAGE RANGE | 90 ~ 295VAC 127 ~ 417VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR | PF 0.9 at 75 ~ 100% load, 115VAC / 230VAC ; PF>0.97 / 115VAC
PF>0.95 / 230VAC at full load |
| EFFICIENCY (Typ.) | 86% |
| AC CURRENT (Typ.) | 0.8A/115VAC 0.4A/230VAC |
| INRUSH CURRENT (Typ.) | 45A/230VAC |
| LEAKAGE CURRENT | <0.75mA / 240VAC |
| PROTECTION | OVER CURRENT | 95 ~ 110% |
| Protection type : Constant current limiting, recovers automatically
after fault condition is removed |
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is
removed |
| OVER VOLTAGE | 14.5~ 17V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE | 85 10 (RTH1) |
| Protection type : Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to output load derating curve) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +80 , 10 ~ 95% RH |
| TEMP. COEFFICIENT | 0.03%/ (0 ~ 50 ) |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for? 72min. each along X, Y, Z
axes |
| SAFETY &EMC(Note 4) | SAFETY STANDARDS | UL8750, TUV EN61347-1, EN61347-2-13, IP66 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: >100M Ohms / 500VDC / 25 / 70% RH |
| EMI CONDUCTION & RADIATION | Compliance to EN55015 |
| HARMONIC CURRENT | Compliance to EN61000-3-2 Class C ( 75% load) ; EN61000-3-3 |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024, EN61547,
light industry level (surge 4KV),? criteria A |
| OTHERS | MTBF | 523.4Khrs min. MIL-HDBK-217F (25 ) |
| DIMENSION | 183*62.5*40.5mm (L*W*H) |
| PACKING | 0.56Kg;24pcs/14.4Kg/1.11CUFT |
| NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC
input, rated load and 25 of ambient temperature. 2. Ripple & noise
are measured at 20MHz of bandwidth by using a 12" twisted pair-wire
terminated with a 0.1uf & 47uf parallel capacitor. Direct
connecting to LEDs is not suggested for models with RIPPLE & NOISE
> 10% and using additional drivers is highly recommended. 3.
Tolerance : includes set up tolerance, line regulation and load
regulation. 4. Derating may be needed under low input voltage.
Please check the static characteristics for more details. 5.
Constant current operation region is within 65% ~100% rated output
voltage. This is the suitable operation region for LED related
applications, but please reconfirm special electrical requirements
for some specific system design. 6. The power supply is considered
as a component that will be operated in combination with final
equipment. Since EMC performance will be affected by the complete
installation, the final equipment manufacturers must re-qualify EMC
Directive on the complete installation again. |
