5W A2 case power adapter/power supply is widely used for all kinds
of consumer electronics
Such as cellphone, battery charger, electric
shaver,E-cigarette,desk lamp,table lamp,MP3/MP4 player,digital
cameras,video camera, attendance machine, E-book. And so on.
Common model:

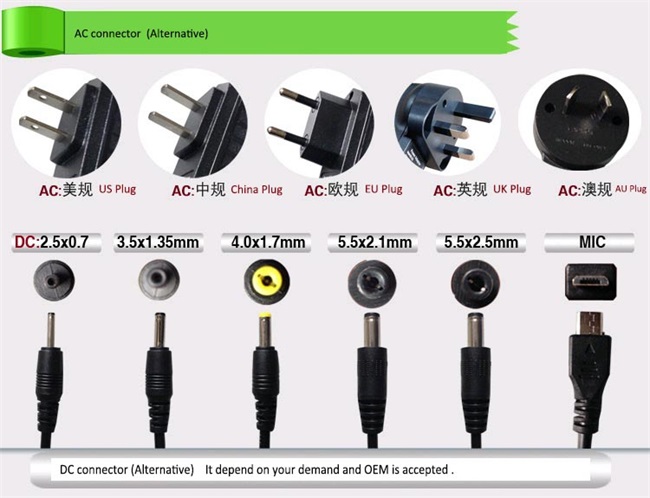

5V /0.6A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for cellphone, battery
charger.
5V /0.5A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for electric
shaver,E-cigarette.
4.2V/0.5A power adapter/charger/power supply with UK, EU, Korea,
US, Aus, Japan, China plug commonly used for desk lamp,table lamp
5V /1A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for MP3/MP4 player,, digital
cameras, video camera, attendance machine, E-book .
12V/0.5A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for fibre optic Ethernet
transceiver, humidifier.
GS CE BS cUL UL CCC PSE SAA KC FCC C-tick VCCI REACH 6P certified
Efficiency level V
Available color: white, black case
With or without USB
| 5W wall mounted power adapter | A2 case |
| 1,AC input voltage range: | 90-265VAC |
| 2,input frequency range: | 47-63Hz |
| 3,Max. input current: | 0.3A |
| 4,Out put voltage adjust range: | 3-5V |
| 5,Output current: | 100mA-1A |
| 6,Output Power: | 5W |
| 7,Energy Efficiency: | >75%(typical) |
| 8,Line Regulation(Full Load): | ≤5% |
| 9,Load Regulation: | ≤5% |
| 10,Ripple and Noise: | ≤100mV. |
| 11,Hold-up Time: | 20ms(220VAC,typical) |
| 12,Rise time: | 50ms full load(typical) |
| 13,Temperature Coefficient: | <±0.03%/℃ |
| 14,Output voltage ajust range: | ±10%(main path) |
| 15,output overload protection: | 105%-250% shut down and restart |
| 16,output overvoltage protection: | 115%-150% shut down and restart |
| 17,Withstand voltage: | input-output 3KVAC/min,input-outside case3KVAC/min |
| 18,Insulation Resistance : | ≥100MΩ(500VDC) |
| 19,Operation temperature: | 0-45℃ |
| 20,safety standard: | comply with GB4943-2011,UL60950,EN60950,EN60065,GS,UL,CB,CE,CCC
.etc safety standards. |
| 21,EMC standard: | comply with GB17625,EN55022 CLASS B,FCC Part 15,EN61000 |
| 22,Life time: | can work below 45℃,full load working time over one year.. |
| 23,Cooling method: | convection |
| 24,case dimension: | EU plug/with cable 7.13*2.38*7.26 unit:cm 63.2g |
| | EU plug/USB 5.52*2.39*7.22 unit:cm 41.5g |
| | US plug/with cable 7.17*2.42*5.75 unit:cm 59.5g |
| | US plug/USB 5.55*2.38*5.70 unit:cm 38.7g |
