    Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output

    Ask Lasest Price
    Brand Name : Phenson
    Model Number : PS-V5-M+r8-2
    Certification : CE,ROHS
    Price : Negotiable
    Supply Ability : 100,000pcs
    • Product Details
    • Company Profile

    Constant Voltage LED DMX Decoder 5 - 24V DC 1 / 3 / 6 / 24 Channel High Output

    24 Channel Constant Voltage DMX512 Decoder 5-24VDC Decode 1 / 3 / 6 / 24 DMX channel


    Technical parameters
    ● Input voltage: 5-24VDC
    ● Input signal: DMX512
    ● Output type: PWM constant voltage
    ● Output current: 24CH,3A/CH
    ● Output power: 360-1728W
    ● Decode number: 1/3/6/24 DMX Channel
    ● Grey levels: 4096/CH
    ● Dimming range: 0-100%
    ● Working temperature: -30℃~55℃
    ● Dimension: L160×W88×H60mm
    ● Weight: 306g

    Summary

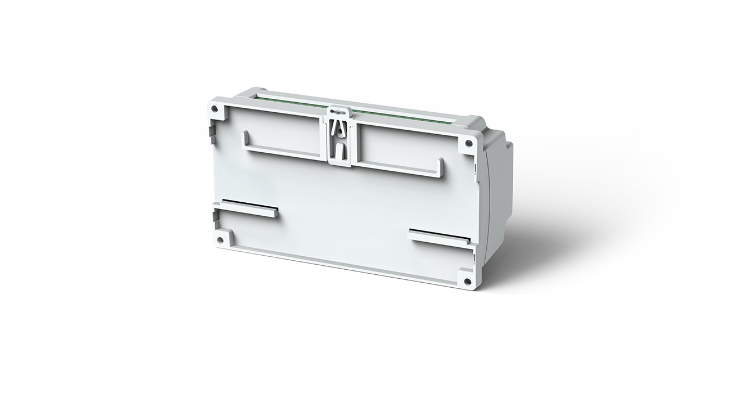

    ● Din rail mounted DMX512 constant voltage decoder, 24 channel output, 3A per channel.
    ● With standard DMX512 compliant interface, DMX address can be set easily and shown on the digital numeric display.
    ● It also can work as stand-alone 24ch RGB controller, have 4 kinds dynamic mode.
    ● It also can work as stand-alone 24ch dimming controller, each channel adjust brightness independently, and save up to 8 groups brightness.
    ● Work with power repeater to expand output unlimitedly.



    Dimension


    Wiring diagram
