Main Description
● Rotary panel 0-10V dimmer, can also be used as dimming RF remote.
● Output 1 channel 0-10V signal, connect with 0/1-10V dimmable
driver.
● High voltage AC input, High voltage AC relay output.
● Rotate knob to change brightness, support push and long push
operation.
● Smooth dimming and switch without any flickering.
● Great compatibility with a variety of dimming RF remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m, one
dimmer can accept up to 10 remote control.
● Work with WiFi-relay controller after install APP on IOS and
Android system.
Technical parameter
● Input voltage: AC85-265V
● Output voltage: AC85-265V
● Output current: Max 3A
● Output signal: 0-10V(20mA)
● Static power: <1W
● Remote distance: 30m
● Work temperature: -30℃~55℃
● Product size: L86×W86×H48.5mm
Match guide
0-10V rotary panel dimmer match with RF remote (Optional)
1. Match: Turn on light, turn off, immediately push the knob for
5s, within 5s, press on/off key or zone key of the RF remote.
2. Delete: Turn on light, turn off, immediately push the knob for
10s, delete all matched RF remote.
3. Multiple zone RF remote only use zone key to match each zone
receiver.
Safety information
1. The product shall be installed and serviced by a qualified
person. 2. The product is non-waterproof. Please avoid the sun and
rain. 3. Good heat dissipation will prolong the working life of the
controller, Please ensure good ventilation. 4. Please check if the
output voltage of any power supplies used comply with the working
voltage of the product. 5. Ensure all wire connections and
polarities are correct and secure before applying power to avoid
any damages to the LED lights. 6. If a fault occurs please return
the product to your supplier. Do not attempt to fix this product by
yourself.

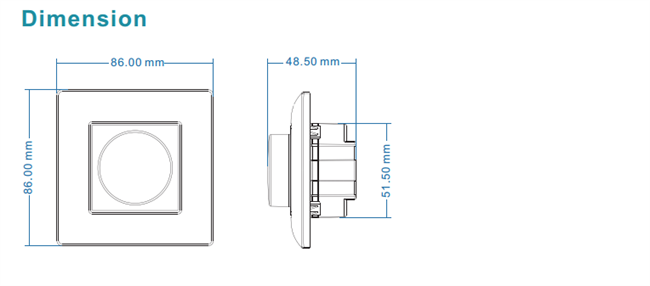

Dimension

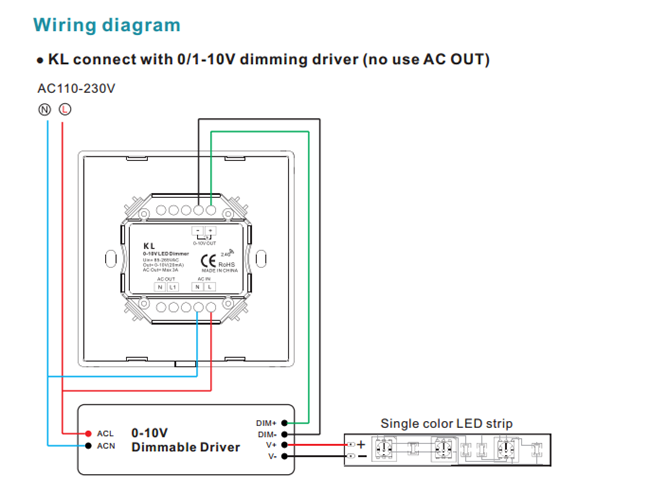

Wiring Diagram
● KL connect with 0/1-10V dimming driver (use AC OUT)
