    RGB SPI Touch Sensor Light Switch , 5 - 24V DC Wall Mounted LED Touch Controller

    Ask Lasest Price
    Brand Name : Phenson
    Model Number : T2-1 Touch Panel Dual
    Certification : CE,ROHS
    Price : US $5 - 15 / Piece
    Supply Ability : 100,000pcs
    • Product Details
    • Company Profile

    RGB SPI Touch Sensor Light Switch , 5 - 24V DC Wall Mounted LED Touch Controller

    Wall Mounted Touch Panel Dual Color LED Constant Voltage Controller & RF 2.4G Remote


    Description

    1.Touch panel CCT PWM constant voltage controller,can also used as CCT remoter.
    2.Ultra sensitive high strength glass touch panel with touch color slide in the middle and backlighting.
    3.Ideal for dual color LED lights warm white and cold white.
    4.256 level brightness adjustment for each white to achieve accurate adjustment of color temperature.
    5.Smooth dimming and switching without any flickering.
    6.Adopt 2.4GHz wireless technology, when used as controller, can accept up to 10 remoter control.

    when used as remoter,can remote control multiple CCT controller.

    7.Can work with WiFi-relay controller after install APP on IOS and Android system.
    8.Work with power repeater to expand output unlimitedly.


    Technical Parameters

    ● Input voltage: 5-24VDC

    ● Output type: PWM constant voltage+RF(2.4G)

    ● Output current: 4CH,3A/CH

    ● Output power: 60-288W

    ● Grey levels: 4096/CH

    ● Dimming range: 0-100%

    ● Remote distance: 30m

    ● Working temperature: -30℃~55℃

    ● Product size: L86×W86×H36.5mm

    ● Net weight: 152g


    Detail image

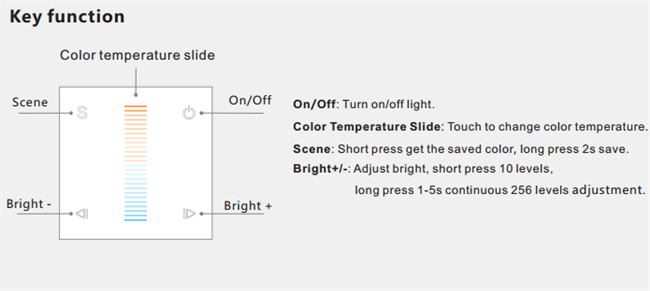

    Panel controller match remoter method

    ● Match: Turn on light, turn off, immediately press on/off key for 5s, within 5s, press any key of the remoter.

    ● Delete: Turn on light, turn off, immediately press on/off key for 10s, delete all matched remoters.


    Panel remoter match receiver method

    For controller with match key

    ● Match: Short press match key, within 5s, press on/off or zone key of the panel.

    ● Delete: Long press match key for 5s, delete all matched remoters. For smart lamp

    ● Match: Switch off the power, then switch on power again, short press on/off or zone key 3 times of the panel within 5s after power on, the link is done once the light blinks 3 times.

    ● Delete: Switch off the power, then switch on power again, short press on/off or zone key 5 times of the panel within 5s after power on, the unlink is done once the light blinks 5 times.


    Wiring diagram

    Images details
