DMX512 Muti-zone dimmer CCT decorative glass touch switch panel for
LED
Product Description
Technical Parameters
● Input voltage: AC85~265V
● Output signal: DMX+RF(2.4G)
● Grey levels: 256/CH
● Dimming range: 0~100％
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size: L86×W86×H36.5mm
● Net weight: 169g
Summary
● Touch panel 4 zone CCT DMX master, can also used as 4 zone CCT RF
Remoter.
● Ultra sensitive high strength glass touch panel with touch color
slide in the middle and backlighting.
● DMX signal output, complies with standard protocol DMX512(1990),
and compatible with DMX decoders from any other suppliers.
● Ideal for dual color LED lights warm white and cold white.
● Control 4 different zones separately or synchronously with
endless decoders in each zone.
● 256 level brightness adjustment for each white to achieve
accurate adjustment of color temperature.
● Smooth dimming and switching without any flickering.
Panel controller match remoter method
● Match with 4 zone CCT remoter, such as R7, R17.
● Match: Turn on light, turn off, immediately press on/off key for
5s, within 5s, press key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for
10s, delete all matched remoters.

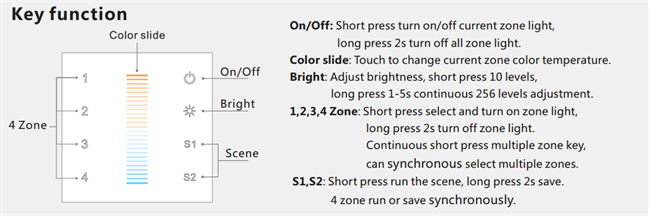

On/Off: Short press turn on/off current zone light, long press 2s
turn off all zone light.
Color slide: Touch to change current zone color temperature.
Bright: Adjust brightness, short press 10 levels, long press 1-5s
continuous 256 levels adjustment.
1,2,3,4 Zone: Short press select and turn on zone light, long press
2s turn off zone light.
Continuous short press multiple zone key, can synchronous select
multiple zones.
S1,S2: Short press run the scene, long press 2s save. 4 zone run or
save synchronously.
Panel controller match remoter method
● Match with 4 zone CCT remoter, such as R7, R17.
● Match: Turn on light, turn off, immediately press on/off key for
5s, within 5s, press key of the remoter.
● Delete: Turn on light, turn off, immediately press on/off key for
10s, delete all matched remoters.
Panel remoter match receiver method
For controller with match key
● Match: Short press match key, within 5s, press on/off key of the
panel.
● Delete: Long press match key for 5s, delete all matched remoters.
For smart lamp
● Match: Switch off the power, then switch on power again, short
press zone key 3 times of the panel within 5s after power on, the
link is done once the light blinks 3 times.
● Delete: Switch off the power, then switch on power again, short
press zone key 5 times of the panel within 5s after power on, the
unlink is done once the light blinks 5 times.
