Wall Mounted Rotary Panel

Constant Voltage Dimming Controller & RF 2.4G Remote

Technical Parameters
● Input voltage: 5-24VDC
● Output type: PWM constant voltage+RF(2.4G)
● Output current: 2CH, 5A/CH
● Output power: 50-240W
● Grey levels: 4096/CH
● Dimming range: 0-100%
● Remote distance: 30m
● Working temperature: -30℃~55℃
● Product size: L86×W86×H50mm
● Net weight: 110g

Summary
● Rotary panel dimming PWM constant voltage controller,can also used as RF dimming remoter.
● Rotate knob to change brightness, support push,long push operation.
● Smooth dimming and switching without any flickering.
● Adopt 2.4GHz wireless technology, when used as controller,can accept up to 10 remoter control. when used as remoter,can remote control multiple dimming controller.
● Can work with WiFi-relay controller after install APP on IOS and Android system.
● Work with power repeater to expand output unlimitedly.

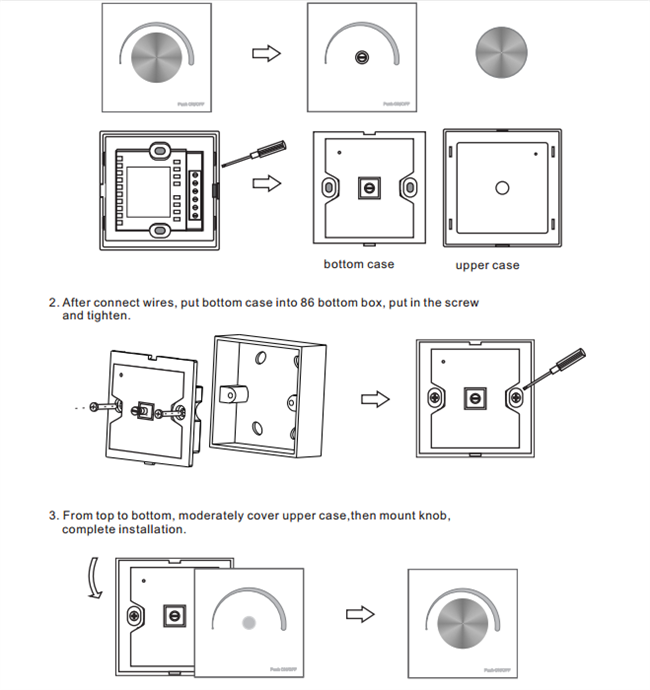

Installation diagram

1. Remove the knob, then flip panel, inserted into the card edge aperture with a small screwdriver, gently pry and open the panel.
