12W 8302 case power adapter is widely used for all kinds of
consumer electronics
Such as Digital Photo Frame, MID, monitor, cash detector, portable
DVD player, tablet PC, router, media player, set top box, air
humidifier and so on.
Common model:

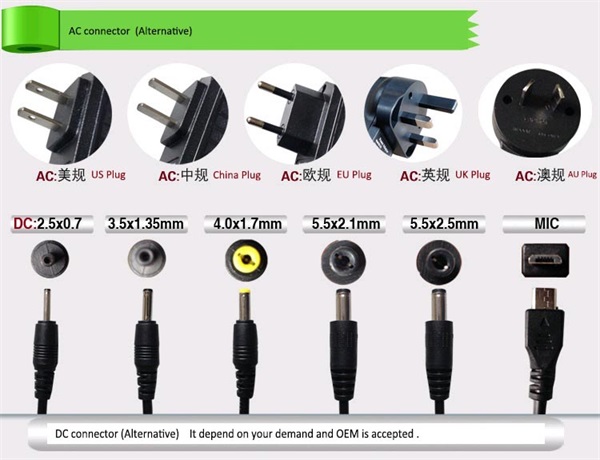

5V /1.5A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for Digital Photo Frame,
MID/tablet PC, LCD monitor, cash detector.
9V /1A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for portable DVD player.
5V /2A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for tablet PC, router.
12V /1A power adapter/charger/power supply with UK, EU, Korea, US,
Aus, Japan, China plug commonly used for router, network switches,
media player, STB(set top box).
24V/0.5A with UK, EU, Korea, US, Aus, Japan, China plug commonly
used for air humidifier.
GS CE BS cUL UL CCC PSE SAA KC FCC C-tick VCCI REACH 6P certified
Efficiency level V
Available color: white, black
With or without USB
| 12W wall mounted power adapter | 8302 case |
| 1,AC input voltage range: | 90-265VAC |
| 2,input frequency range: | 47-63Hz |
| 3,Max. input current: | 0.5A |
| 4,Out put voltage adjust range: | 12W→4-12V;15W→5-24V |
| 5,Output current: | 12W→0.1-2.1A;15W→0.1-3A |
| 6,Output Power: | 12W-15W |
| 7,Energy Efficiency: | Ⅳ,Ⅴ |
| 8,Line Regulation(Full Load): | ≤5% |
| 9,Load Regulation: | ≤5% |
| 10,Ripple and Noise: | ≤100mV. |
| 11,Hold-up Time: | 20ms(220VAC,typical) |
| 12,Rise time: | 50ms full load(typical) |
| 13,Temperature Coefficient: | <±0.03%/℃ |
| 14,Output voltage ajust range: | ±10%(main path) |
| 15,output overload protection: | 105%-250% shut down and restart |
| 16,output overvoltage protection: | 115%-150% shut down and restart |
| 17,Withstand voltage: | input-output 3KVAC/min,input-outside case3KVAC/min |
| 18,Insulation Resistance : | ≥100MΩ(500VDC) |
| 19,Operation temperature: | 0-45℃ |
| 20,safety standard: | comply with GB4943-2011,UL60950,EN60950,EN60065,GS,UL,CB,CE,CCC
.etc safety standards. |
| 21,EMC standard: | comply with GB17625,EN55022 CLASS B,FCC Part 15,EN61000 |
| 22,Life time: | can work below 45℃,full load working time over one year.. |
| 23,Cooling method: | convection |
| 24,case dimension: | China plug/with cable 8.82*2.81*6.21 unit:cm 79.1g |
| | EU plug/with cable 9.47*3.04*7.82 unit:cm 68.3g |
Features:
1. High efficiency and low operation temperature
2. AC input power suitable for the world
3. Soft-start current can reduce the AC input impact efficiency
4. With short-circuit and overload protection
5. Compact size ,light weight
6. 100%full-load burning test
