    80W 24V DC LED Driver Power Supply Over Current Protection For Street Lighting

    Ask Lasest Price
    Brand Name : Meanwell
    Model Number : HLG-80H-24B
    Certification : CCC TUV UL CB EMC CE
    Price : US $25~35/ Piece
    Payment Terms : T/T, L/C, Western Union
    • Product Details
    • Company Profile

    80W 24V DC LED Driver Power Supply Over Current Protection For Street Lighting

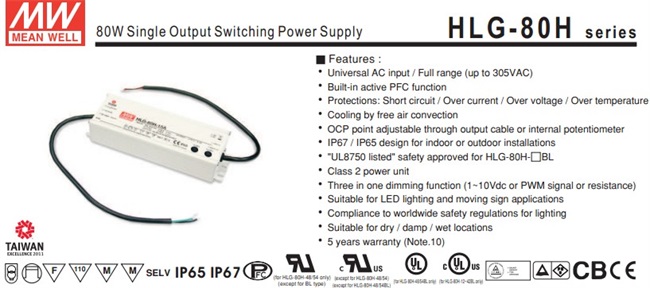

    Mean Well HLG-80H-24B Led Driver 80W Power Supply 24VDC


    Main Features

    ♦ Universal AC input / Full range (up to 305VAC)
    ♦ Built-in active PFC function
    ♦ Protections: Short circuit / Over current / Over voltage / Over temperature
    ♦ Cooling by free air convection
    ♦ OCP point adjustable through output cable or internal
    ♦ IP67 / IP65 design for indoor or outdoor installations
    ♦ Class 2 power unit
    ♦ Three in one dimming function (1~10Vdc or PWM signal or resistance)
    ♦ Suitable for LED lighting and street lighting applications
    ♦ Compliance to worldwide safety regulations for lighting
    ♦ 5 years warranty (Note.10)
    ♦ Suitable for dry / damp / wet locati


    Specifications

    ♦ 7w led bulb driver

    ♦ P67 / IP65
    ♦ Casing metal

    ♦ Class 2 power unit

    ♦ 5 years warranty


    Product Specification



    MODELHLG-80H-24A
    OUTPUTDC VOLTAGE24V
    RATED CURRENT3.4A
    RATED POWER80W
    RIPPLE & NOISE (max.)150mVp-p
    VOLTAGE ADJ. RANGE10.8~13.5V
    CURRENT ADJ. RANGECan be adjusted by internal potential meter or through output cable
    3~5A
    VOLTAGE TOLERANCE±2.5%
    LINE REGULATION±0.5%
    LOAD REGULATION±2.0%
    SETUP, RISE TIME2000ms, 80ms/115VAC at full load 1000ms,80ms/230VAC at full load
    HOLD UP TIME (Typ.)16ms at full load 230VAC/115VAC
    INPUTVOLTAGE RANGE90 ~ 305VAC /127 ~ 431VDC
    FREQUENCY RANGE47~63Hz
    POWER FACTORPF> 0.96/115VAC,PF>0.96/230VAC,PF>0.94/277VAC at full load and rated output voltage PF > 0.9 at 65 ~100% load
    EFFICIENCY (Typ.)90.5%
    AC CURRENT0.85A / 115VAC 0.425A / 230VAC 0.4A/277VAC
    INRUSH CURRENT (Typ.)COLD START 70A/230VAC
    LEAKAGE CURRENT<0.75mA / 277VAC
    PROTECTIONOVER CURRENT95 ~ 108%
    Protection type : Constant current limiting, recovers automatically after fault condition is removed
    SHORT CIRCUITHiccup mode, recovers automatically after fault condition is removed.
    OVER VOLTAGE14 ~ 17V
    Protection type : Shut down and latch off o/p voltage, re-power on to recover
    OVER TEMPERATURE85°C ±10(TSW1)
    Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
    ENVIRONMENTWORKING TEMP.-40 ~ +70°C
    WORKING HUMIDITY20 ~ 95% RH non-condensing
    STORAGE TEMP., HUMIDITY-40~+80°C,10~95% RH
    TEMP. COEFFICIENT±0.03%/ (0 ~ 60°C )
    VIBRATION10 ~ 500Hz, 5G 12min./1cycle, period for 72min.each along X, Y,Z axes

    SAFETY &

    EMC

    SAFETY STANDARDSUL8750, CSA C22.2 No. 250.0-08 (except for 48V, 54V), EN 61347 -1, EN61347-2-13 indep endent, IP65 or IP 67, J61347-1,
    J61347-2-13approved ; design ref er to UL60950-1, T UV EN60950-1, EN60335-1
    WITHSTAND VOLTAGEI/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
    ISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
    EMI CONDUCTION & RADIATIONCompliance toEN55015, EN55022 (CISPR22) Class B
    HARMONIC CURRENTCompliance to EN61000-3-2 Class C ( 50% load) ; EN61000-3-3
    EMS IMMUNITYCompliance to EN61000-4-2,3,4,5,6,8,11; ENV50204, EN61547, EN55024, heavy industry level (surge 4KV), criteria A
    OTHERSMTBF357.8Khrs min. MIL-HDBK-217F (25°C )
    DIMENSION195.6*61.5*38.8mm (L*W*H)
    PACKING0.84Kg; 16pcs/14.4Kg/0.54CUFT

    Packaging & Delivery

    Packaging Details

    Special protective exporting switching power supply case,packing:195.6*61.5*38.8mm(L*W*H); 0.84Kg; 0.84Kg; 16pcs/14.4Kg/0.54CUFT
    for Mean Well HLG-80H-24B led driver 80w power supply 24vdc

    Delivery Time

    1~3 days after payment
