    Enclosed Type 150W Switch LED Driver Power Supply / SMPS / PSU For Industries

    Ask Lasest Price
    Brand Name : Meanwell
    Model Number : NES-150-12
    Certification : UL CB EMC ROHS
    Price : Negotiable
    • Product Details
    • Company Profile

    Enclosed Type 150W Switch LED Driver Power Supply / SMPS / PSU For Industries

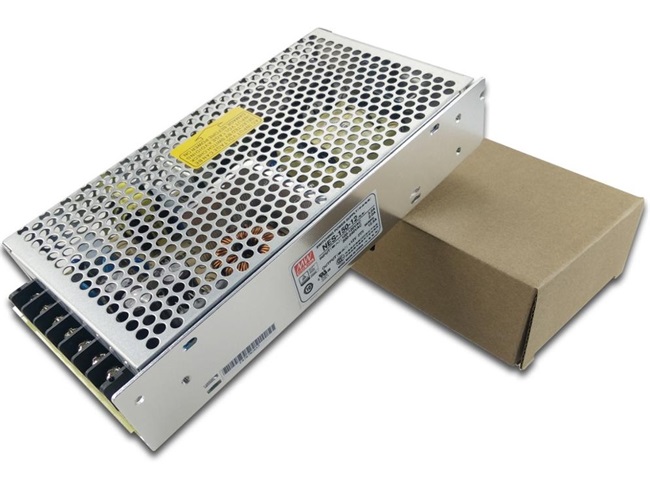

    Meanwell Enclosed Type NES-150-12 12V 150W Switch Power Supply / SMPS / PSU

    Features:

    ♦ Universal AC input/Full change
    ♦ Protections: Short circuit / Over voltage / Overload
    ♦ Cooling by free air convection
    ♦ Most economical low wattage solution with safety certificates
    ♦ Wattages from 15~350w switching power supply
    ♦ suitable for led strip /indoor lighting/industries/mechanical automation etc;
    ♦ Certification: UL CB EMC
    ♦ High quality and long life
    ♦ 3 years warranty


    NES series is one of the most economical models in the AC/DC enclosed type switching power supply and built-in complete protections (CCC, UL, CB). Firstly, NES series switching power supply is universal AC input/ Full range. Secondly, this series led driver with short circuit/ overload/ over voltage/ over temperature protections. Thirdly, NES series cooling by free air convection. Forth, NES series switching power supply with 100% full load burn-in test. Fifth, high reliability, 2 years warranty (we have full confidence of our quality, it’s very competitive with the similar brands in the international market). Sixth, NES series switching power supply with miniature size suitable for varieties of installation conditions. Seventh, NES series AC/DC enclosed power supply range from 15 to 350 watts has been earning supreme customer’s rating for a long time. All of these features make the NES series switching power supply become the highest cost-effective models in the switching power supply family.

    Power Supply PARAM

    MODEL


    NES-150-12



    OUTPUT


    DCVOLTAGE

    12V


    RATEDCURRENT

    12.5A


    CURRENTRANGE

    0 ~ 12.5A


    RATEDPOWER

    150W


    RIPPLE&NOISENOTE.2

    120mVp-p


    VOLTAGEADJ.RANGE

    11.4 ~ 13.5V


    VOLTAGETOLERANCE

    ±2.0%


    LINEREGULATION

    ±0.5%


    LOADREGULATION

    ±1.0%


    SETUP.RISEHOLD.TIME

    800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load


    MODEL


    NES-150-12



    INPUT


    VOLTAGERANGE

    90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC


    FREQUENCYRANGE

    47~63HZ


    EFFICIENCY

    83%


    AC CURRENT

    3A/115VAC 2A/230VAC


    INRUSH CURRENT

    COLD START 45A/230VAC


    LEAKAGECURRENT

    <2mA / 240VAC



    MODEL


    NES-150-12



    PROTECTION



    OVERLOAD

    110 ~ 150% rated output power


    Protection type : Hiccup mode, recovers automatically after fault condition is removed

    OVER VOLTAGE

    13.8~ 16.2V


    Protection type : Hiccup mode, recovers automatically after fault condition is removed

    OVER TEMPERATURE

    U1 Tj 140℃ typically(U1) Detect on main control IC


    Proterction type:Shut down o/p voltage recovers automatically after temperature goes down

    MODEL


    NES-150-12



    Others


    Packing

    0.7Kg; 20pcs/15Kg/0.72CUFT


    Dimention

    199*98*38mm (L*W*H)
