    24V DMX512 RGBW Led Pixel Module Lights For Amusement Rides Waterproof IP67

    Ask Lasest Price
    Brand Name : Phenson
    Model Number : PS-28045-DMX-RGBW-24V
    Certification : CE Rohs
    Price : Negotiable
    Payment Terms : T/T Paypal, T/T, Western Union
    Supply Ability : 50kk/month
    • Product Details
    • Company Profile

    24V DMX512 RGBW Led Pixel Module Lights For Amusement Rides Waterproof IP67

    24V DMX512 RGBW Led Pixel Module Lights For Amusement Rides Waterproof IP67


    Specifications,

    Model NO.PS-28045-DMX-RGBW-24V
    Input voltageDC24V
    Power consumption12.96W
    LED QTY36pcs RGB LEDs, 18pcs W LEDs
    installationScrew 18mm hole clips on it
    iC typeDMX512 RGBW
    Connectors2pin for power/ 5pin for DMX
    Warranty2 years
    CertificateCE,RoHS

    Features ,

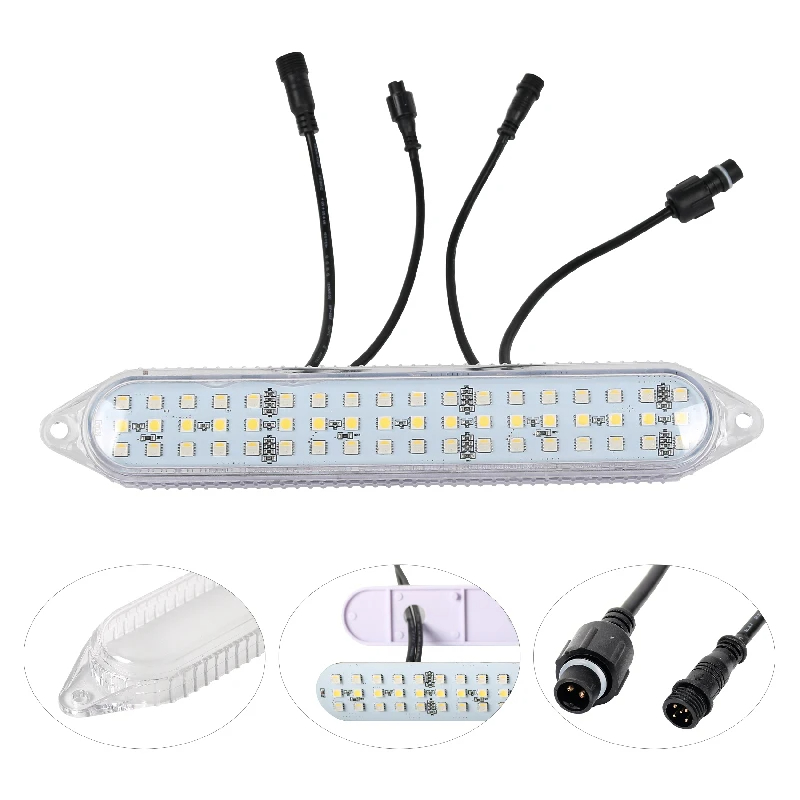

    280mm*45mm Diameter LED pixel module
    - 36 pcs SMD5050 RGBW (CCT 5000-5500k)&
    18 white LEDs (CCT 5000-5500k)

    - 12.96W, 3pcs DMX512IC

    - 1pcs/Chain

    - 1pcs seperated with 2pin & 5pin male & female black waterproof connector


    Male&Female connector
    - 5pin connector for DMX signal, 2pin connector for power (input & output)

    - one pair 2pin male&female & one 5pin pair male&female


    Special PCB Design
    - 3 DMX ICs, each IC controlling a line/group of LED, 3lines/ groups in total

    - Extra 6pcs white LED to each line, which are not controlled by IC, and 2pin black waterproof male&female connector cables are provided separately

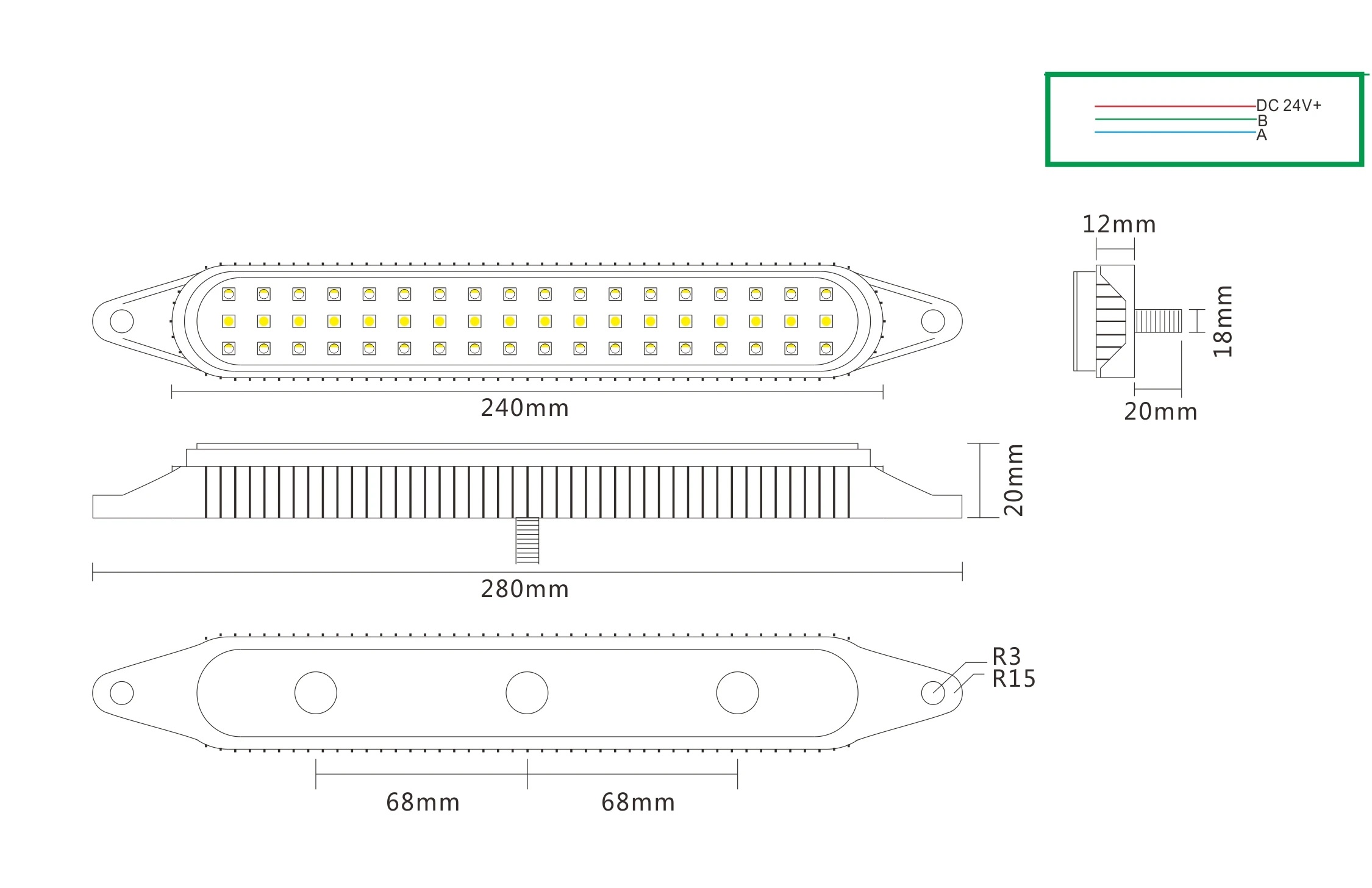

    Dimension&drawing,

    Application,

    Amusement Rides
