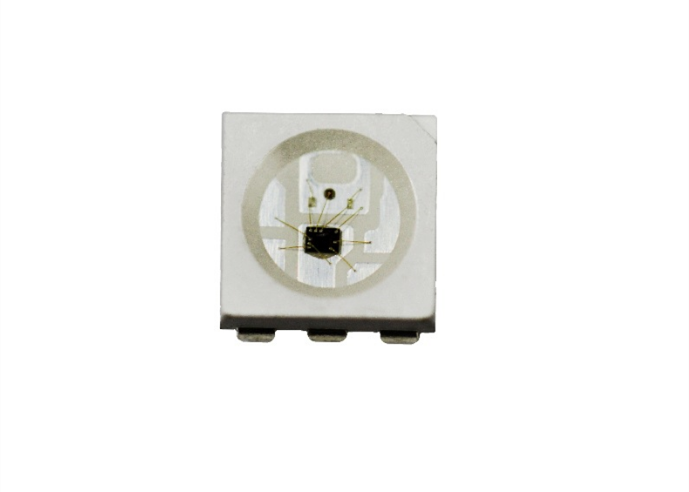

Ws2813 RGB 5050 SMd 5V Led CHip 5V Working Voltage Signal Break-Point Continuous Transmission LED

Features and Benefits of WS2813B Intelligent control LED integrated light source,

• The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel.
• Intelligent Reverse-connection protection.The components will not be damaged when the 5V power supply is reversed.
• Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place.
• The gray levels of each pixel are of 256 levels, which achieves “256*256*256=16777216” full-color display, and the refresh frequency reaches to 2KHz.
• Serial cascade interface, data receiving and decoding depend on just one signal line.
• Dual-signal wires version, signal break-point continuous transmission.
• Any two point the distance more than 2M transmission signal without any increase circuit. l When the refresh rate is 30fps, cascade numbers is at least 1024 pixels.
• Data transmitting at speeds of up to 800Kbps.
• Good color consistency reliability, high cost-effective.
• NO extra components needed, even the capacitor.

Applications,

• consumer electronics
• Landscape lighting fields
• Computer peripheral products ,games devices and machinery equipment etc

General description,

WS2813B-V5/W is an intelligent control LED light source that the control circuit and RGB chip are integrated in a
package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification
drive circuit. Also include a precision internal oscillator and a voltage programmable constant current control part, which achieves highly consistent color effect. Dual-signal wires version, signal break-point continuous transmission. Any pixel’s failure won't affect signal transfer
and total emitting effect. The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive
data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which
reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After
transmission for each pixel, the signal to reduce 24bit. Every pixel adopts auto-reshaping transmit technology, making
the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission. Refresh Frequency updates to 2KHz, Low Frame Frequency and no Flicker appear in HD Video Camera. RESET time>280μs, it won’t cause wrong reset while interruption, it supports the lower frequency and inexpensive MCU.

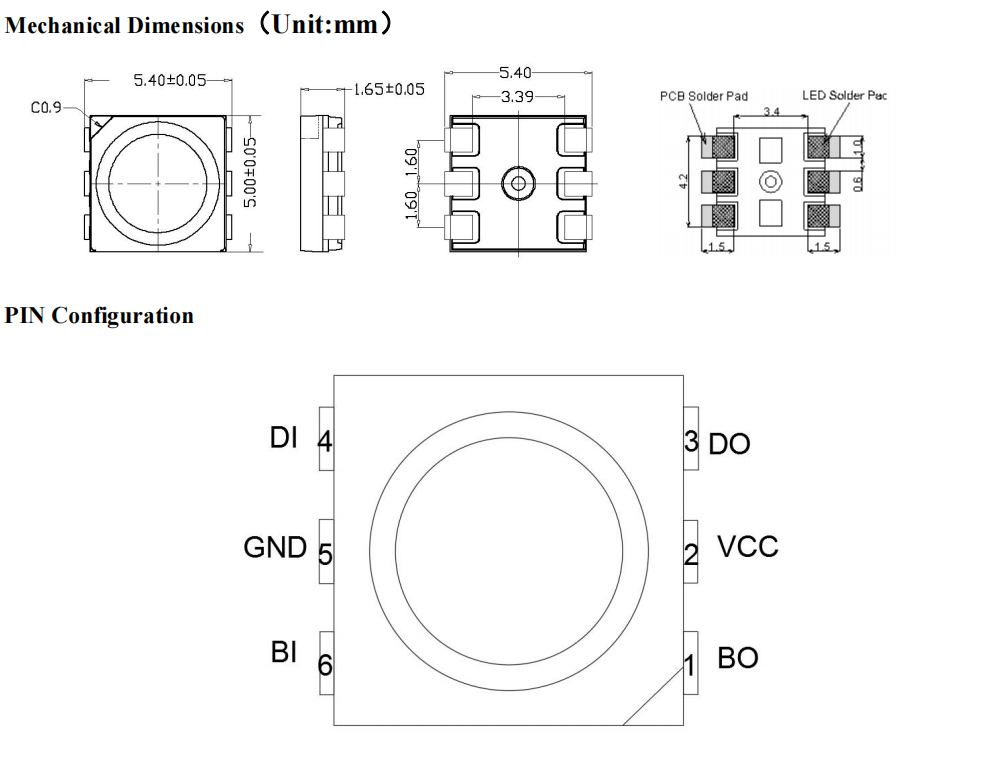

PIN Function

Absolute Maximum Ratings (TA=25℃, Vcc=5V, VSS=0V)

LED Characteristics

Packaging and delivery
1. product name :ws2813 RGB 5050 SMd 5V Led CHip 5V working Voltage
2. 1000pcs/roll
