Multi Colours SMD 5050 RGB+W 60 LEDS Flexible LED Strip Lights / Flexible LED Strip Light

Descriptions:
1. 2. DC12V, 60leds/m, 14.4w/m,
2. Available in single colors: red, green, blue, yellow, RGB, RGBW, white, warm white, etc.
3. Cuttable every 3LEDs along the cutting marks.
4. With 3M adhesive tape in the back, very simple to install at any surfaces.
5. No ultraviolet and infrared radiation, low heat-release, long lifetime for 35,000hrs.
6. 120° view angle.
7. CE and RoHS approved.
8. 2 years warranty.

Parameter :

Appication:

♦ Building decoration

♦ Car decoration

♦ Amusement park and theater lighting

♦ Emergency hallway lighting

♦ Shopping mall, restaurant, hotel, meeting room and advertisement lighting decoration

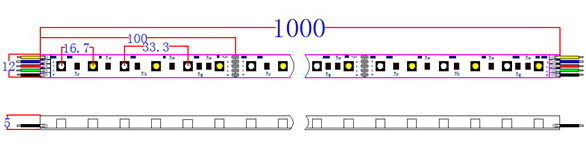

SMD 5050 LED Strip Dimension:



Normal packing :



A. Connector of strip to strip and connector of strip to power are both available:
1. Cut along the mark line, tear a little bit 3M tape from the mark. If 3M tape is not peeled off a little,
it will be not easy to insert the strip into the connector.
2. Pull the black plastic lock out from the connector, insert strip.
3. Make sure the soldering pads fully touch the conjunction metal.
4. Push the plastic lock back towards the middle in the lock position.
5. Do not use too much strength while pulling the plastic lock, otherwise it can destroy the connector.

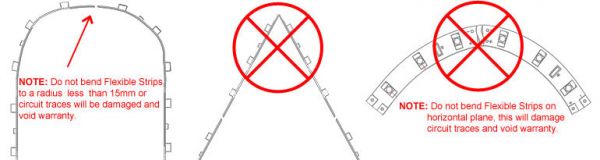

B. Notes for flexible RGB LED strip light mounting:
1. Please make sure that the back-surface of RGB LED strip light are clean and dry. no dirt, oil, silicon oil, etc.
2. Make sure that the adhesive backing is removed completely to guarantee perfect mounting.
3. After the SMD LED strip is well-positioned, press the strip with an appropriate force.

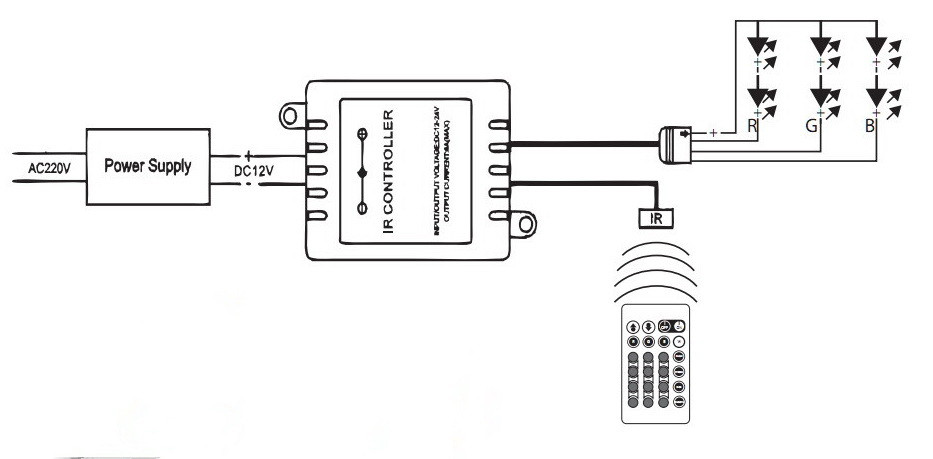

Typical connection :
